Spacers for louvre walls

Nov 5, 2016

Plugs slatwalls

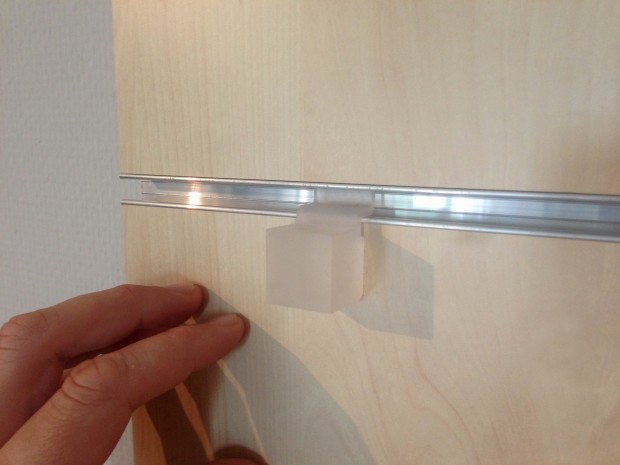

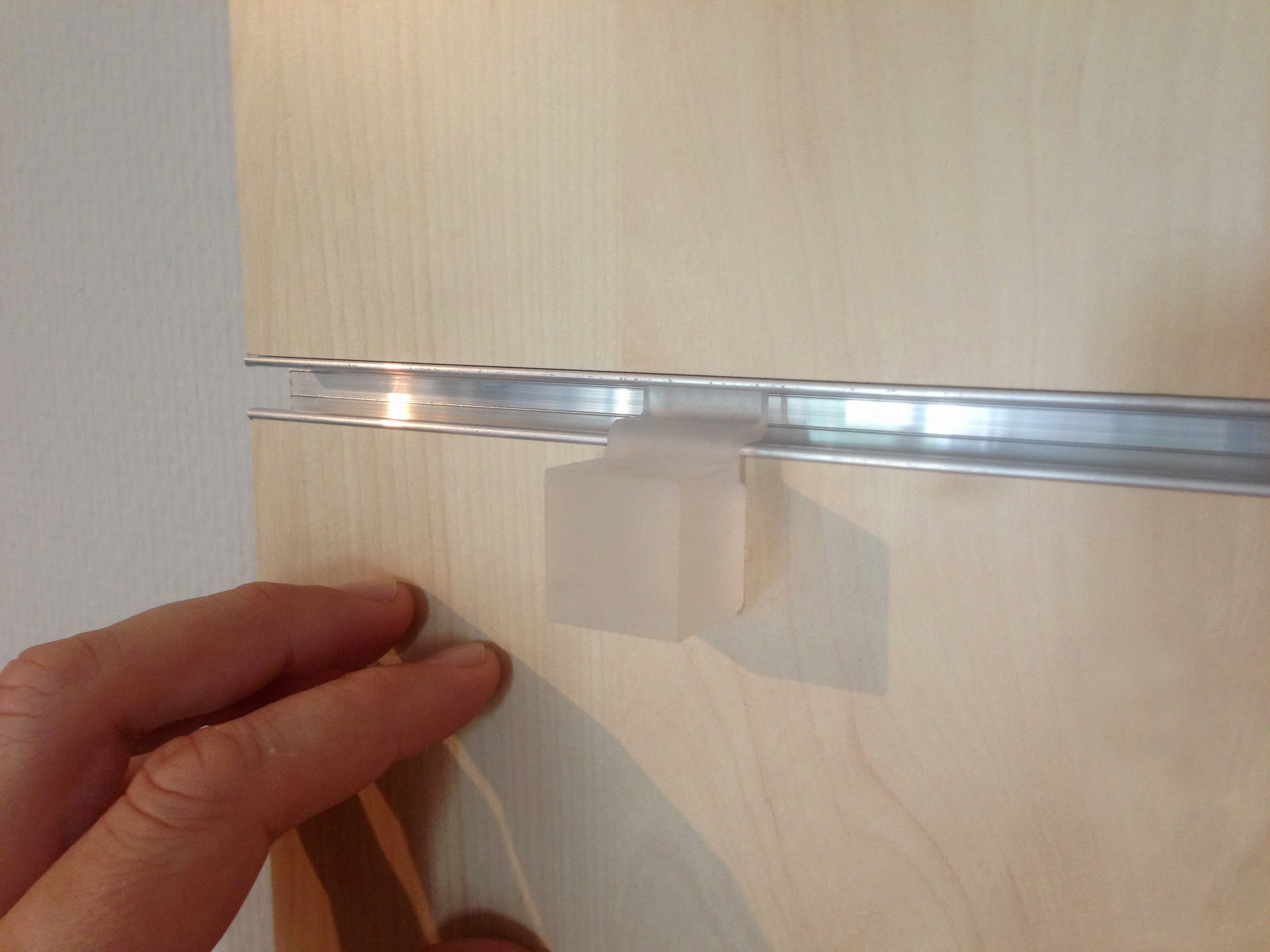

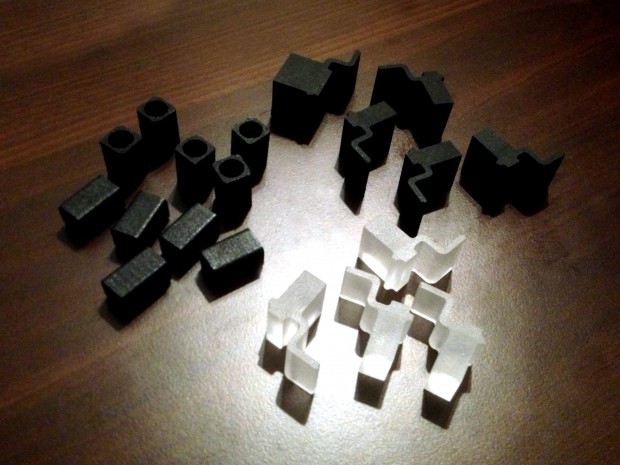

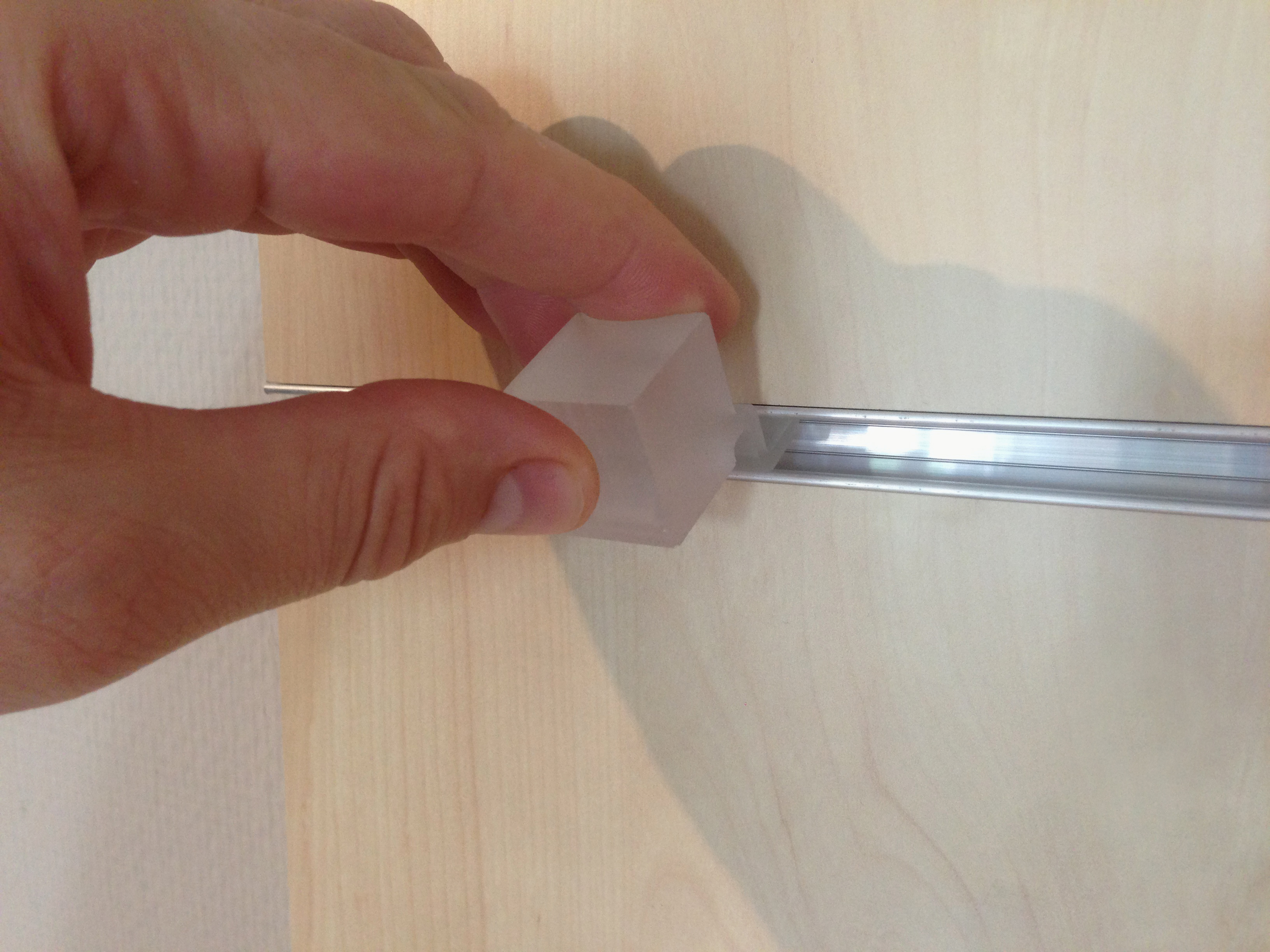

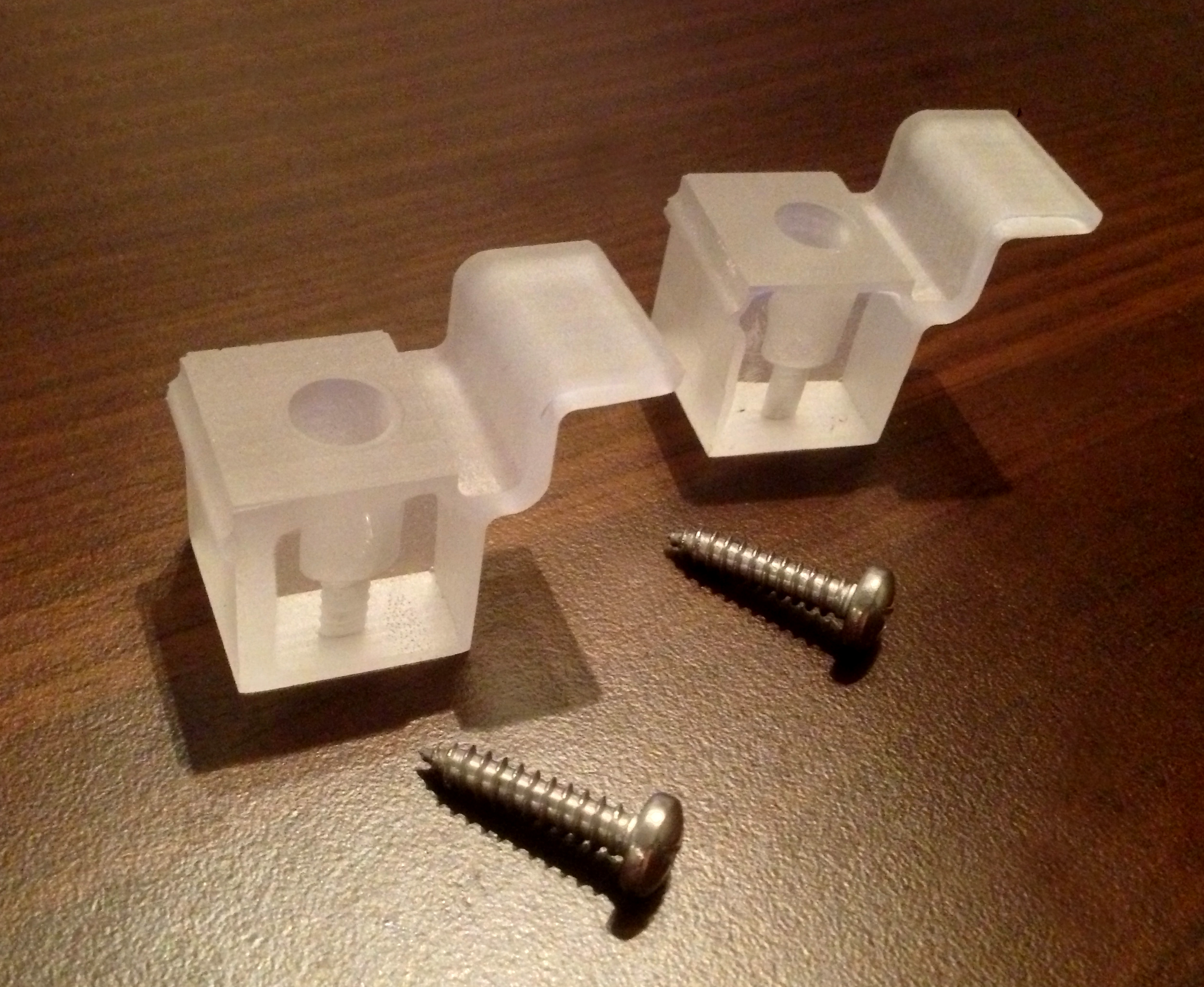

These plugs / spacers are made to supplement the existing range of accessories for the slat walls / slatwalls that parties such as retif.nl sell. louvered wall There were no suitable plugs available for hanging wooden objects, so these were made by myself (in transparent, white and black). Above you can see: the counter moulds, the molds and the end result (unfortunately not crystal clear but matted). They fit perfectly into the profile of the slatted walls. UPDATE: all plugs were made with 3d printer.

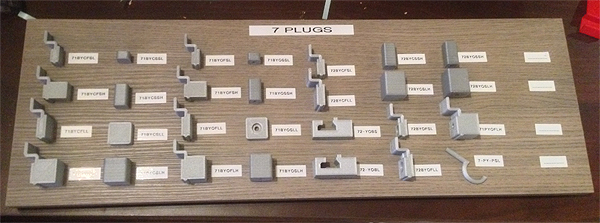

7plugs


7 plug IDs:

===============

3d printed on layer height: 0.20, 40% fill density

|--------- 7 plugs identifier (this digit is always 7 for 7 plugs)
||-------- wall type (wall type 1: slatwalls, wall type 2: direct connection to walls, -)
|||---------- plug type (Block, Pinblock (narrower hole than with screwhole))
||||------ Y = color (Transparent, White, Silver, Black)
|||||----- Closed/Open/-
||||||---- part type (Front/Back/Support/Pin Curve)
|||||||--- Small/Large
||||||||-- Low/High
================================================== ==

all ids:

71BYCFSL
71BYCFSH
71BYCFLL
71BYCFLH
71BYCSSL
71BYCSSH
71BYCSLL
71BYCSLH

71BYOFSL
71BYOFSH
71BYOFLL
71BYOFLH
71BYOSSL
71BYOSSH
71BYOSLL
71BYOSLH

72BYCFSL
72BYCFLL
72-YOBS
72-YOBL
72BYCSSH
72BYCSLH

72BYOFSL
72BYOFLL
72BYOSSH
72BYOSLH

71PYOFLH
7-PY-PSL

plug2 plug3 spacers 001
